Water CO2 SP type

Application Area

Offices and commercial complexes

Residential buildings and housing societies

Schools, colleges, and libraries

Warehouses storing paper, wood, or textiles

Shopping malls and retail outlets

Hospitals and hotel premises

Packaging and printing industries

Corridors, staircases, and common utility areas

Overview

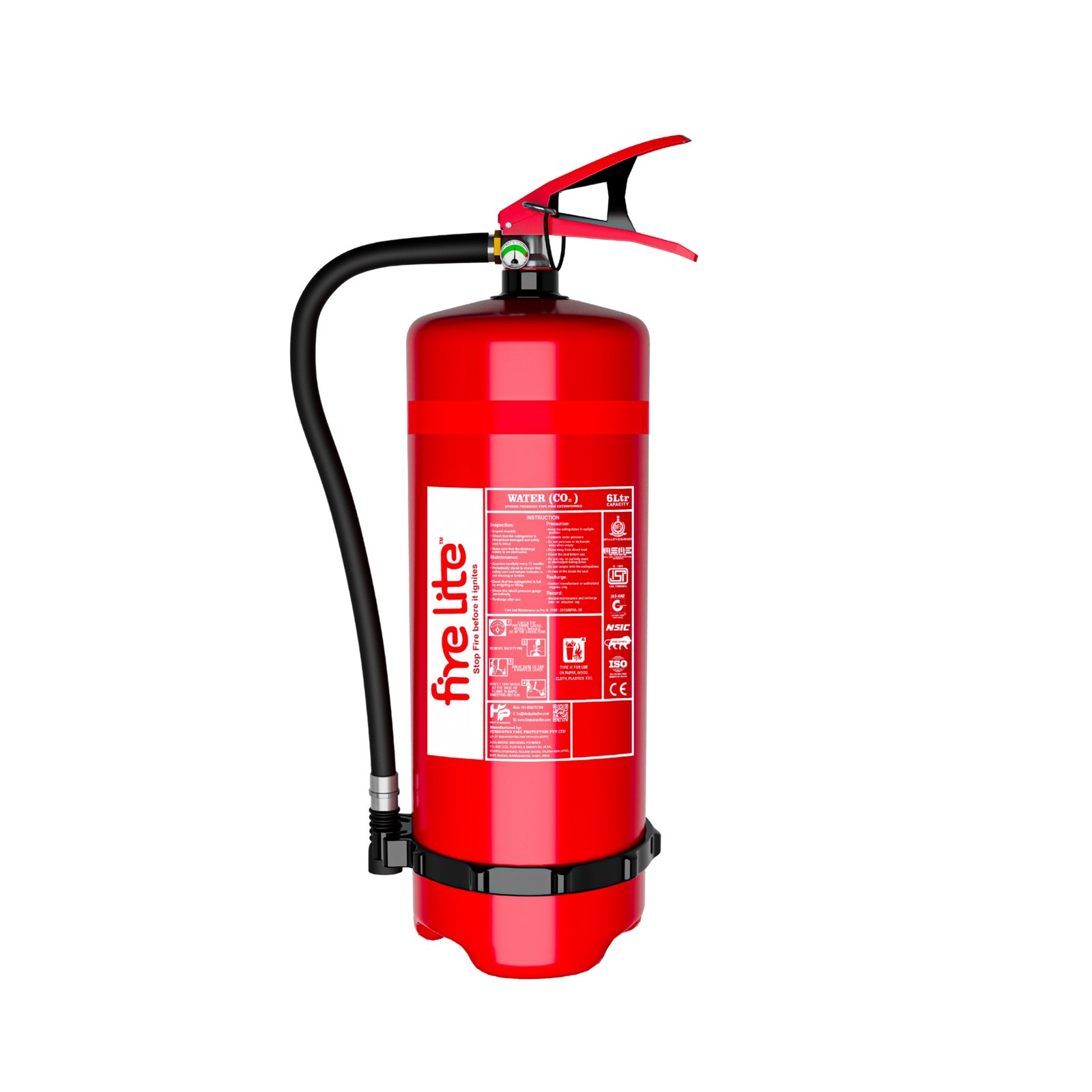

Water CO₂ SP Type Fire Extinguisher

Fires involving solid combustible materials can escalate quickly if not controlled during the early stages. The Water CO₂ SP Type Fire Extinguisher is specifically designed to combat such fires by using water as a highly effective cooling agent.

Inside the extinguisher, water is stored as the main extinguishing medium, while carbon dioxide gas is stored in a separate cartridge or pressure chamber. When the extinguisher is activated, the CO₂ gas pressurizes the cylinder and forces the water out through the discharge hose and nozzle.

ITEM CODE	FL025	FL026
Type	Water	Water
Capacity	6 LTR	9 LTR
Fire Rating (Map)	2A	3A
Height (Approx.)	530 mm	585 mm
Diameter (Approx.)	150±10 mm	180±10 mm
Average Discharge Time	22 Sec	35 Sec
Average Range of Throw	5 m	7 m
Average % Discharge	96%	97%
Operating Temperature	+5°C to +60°C	+5°C to +60°C
Max. Service Pressure (Pms)	17 bar	17 bar
Test Pressure	35 bar	35 bar
Expelling Agent	Nitrogen (UHP Grade)	Nitrogen (UHP Grade)
Approvals	BIS & CE	BIS & CE
