Water CO2 C type

Application Area

Offices and commercial buildings

Schools, colleges, and public institutions

Residential apartments and housing societies

Warehouses storing solid combustible materials

Textile mills and paper storage areas

Packaging and printing units

Shopping malls and retail stores

Hospitals and hotels common areas

Overview

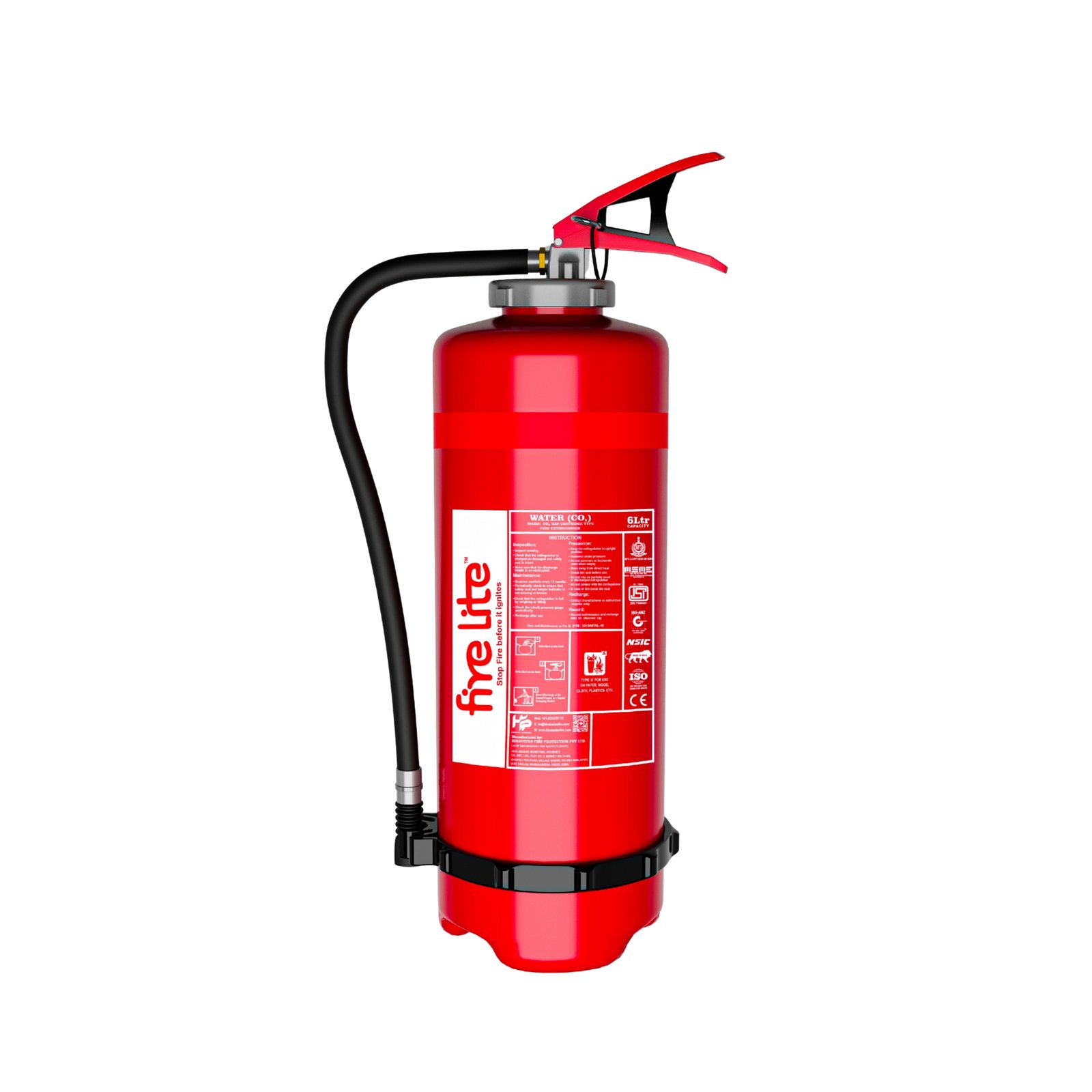

Water CO₂ C Type Fire Extinguisher

Fire incidents involving ordinary combustible materials can spread rapidly if not controlled at an early stage. The Water CO₂ C Type Fire Extinguisher is specifically designed to handle such fires efficiently by using water as the primary extinguishing agent.

This extinguisher contains water stored inside the cylinder, while carbon dioxide gas is stored in a separate cartridge. When the extinguisher is activated, the CO₂ gas is released into the cylinder, creating pressure that forces the water out through the discharge hose and nozzle.

ITEM CODE	FL027	FL028
Type	Water	Water
Capacity	6 LTR	9 LTR
Fire Rating (Map)	2A	3A
Height (Approx.)	530 mm	585 mm
Diameter (Approx.)	150±10 mm	180±10 mm
Average Discharge Time	21 Sec	32 Sec
Average Range of Throw	5 m	7 m
Average % Discharge	96%	97%
Operating Temperature	+5°C to +60°C	+5°C to +60°C
Max. Service Pressure (Pms)	16 bar	16 bar
Test Pressure	35 bar	35 bar
Expelling Agent	CO2 Gas	CO2 Gas
Approvals	BIS & CE	BIS & CE
