Powder extinguishers DCP BC cartrige type

Application Area

Electrical panels and transformer areas

Petrol pumps and fuel storage locations

Chemical plants and solvent storage areas

Automobile garages and workshops

Industrial machinery and production units

Generator rooms and boiler sections

Warehouses storing flammable liquids

Parking areas and transport depots

Overview

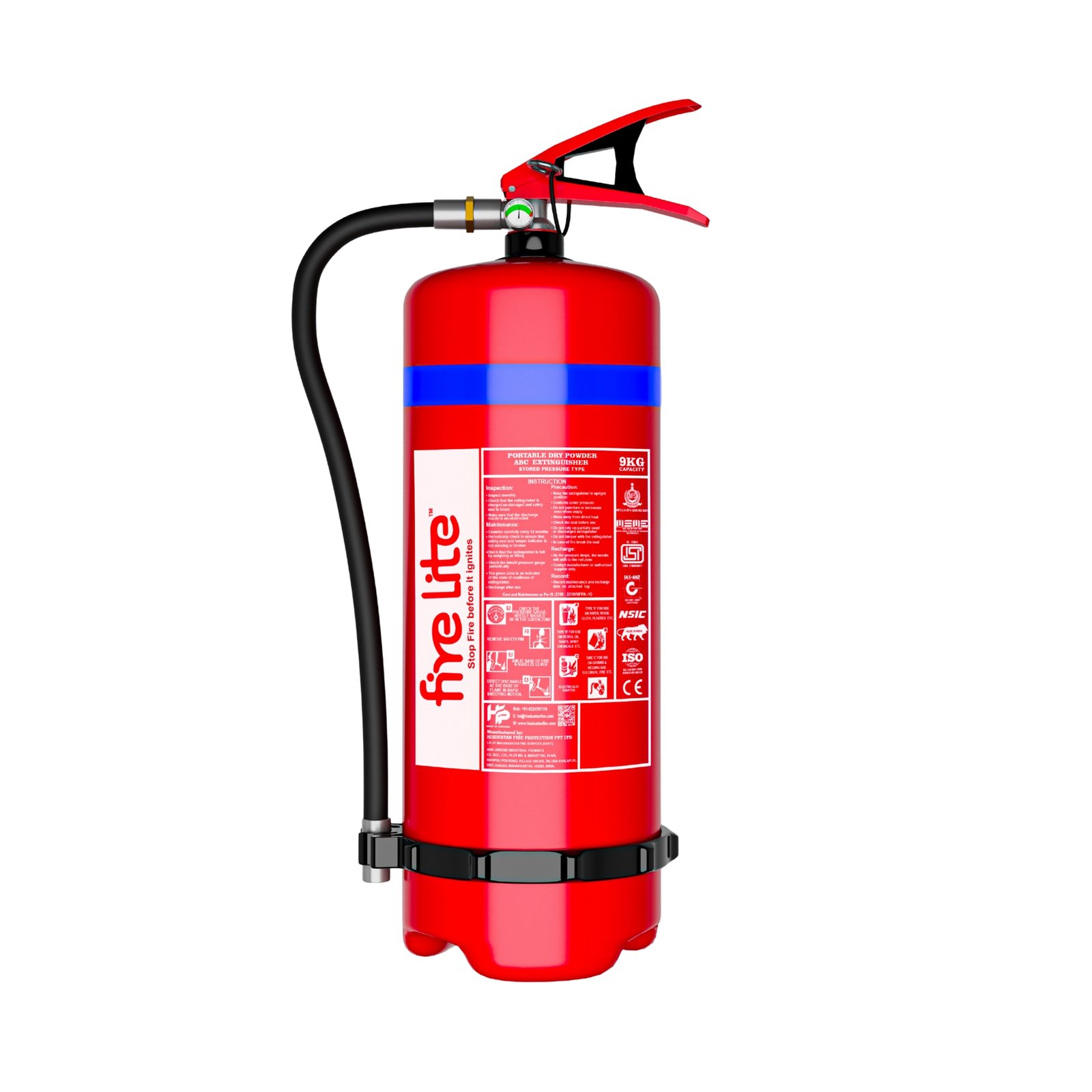

Powder Extinguishers – DCP BC Cartridge Type

Fires involving flammable liquids and electrical equipment require a fast and effective fire suppression method to prevent serious damage and safety risks. The DCP BC Cartridge Type Fire Extinguisher is specifically designed to handle such fire hazards using dry chemical powder technology.

This extinguisher contains BC type dry chemical powder, which is highly effective for suppressing fires involving flammable liquids and gases. When discharged, the powder spreads over the flames and interrupts the chemical chain reaction that sustains the fire. At the same time, it forms a protective layer that prevents oxygen from reaching the burning material.

Specification	FL010	FL011	FL012
Capacity	4 kg	6 kg	9 kg
Fire Rating (Map)	55B	89B	144B
Height (Approx.)	510 mm	540 mm	585 mm
Diameter (Approx.)	140±10 mm	150±10 mm	180±10 mm
Average Discharge Time	15 sec	20 sec	30 sec
Average Range of Throw	4 m	4.5 m	5 m
Average % Discharge	92%	94%	93%
Operating Temperature	-30°C to +60°C	-30°C to +60°C	-30°C to +60°C
Max. Service Pressure (Pms)	16 bar	16 bar	16 bar
Test Pressure	35 bar	35 bar	35 bar
Expelling Agent	CO2 Gas	CO2 Gas	CO2 Gas
Shipping Weight (Approx.)	7.5 kg	10.5 kg	15.7 kg
Approvals	BIS & CE	BIS & CE	BIS & CE
