Powder Extinguishers ABC Stored Pressure type

Application Area

Offices and commercial buildings

Residential apartments and housing societies

Warehouses and storage facilities

Shops, malls, and showrooms

Schools, colleges, and public institutions

Parking areas and vehicle garages

Factories and light industrial units

Electrical rooms and DG set areas

Overview

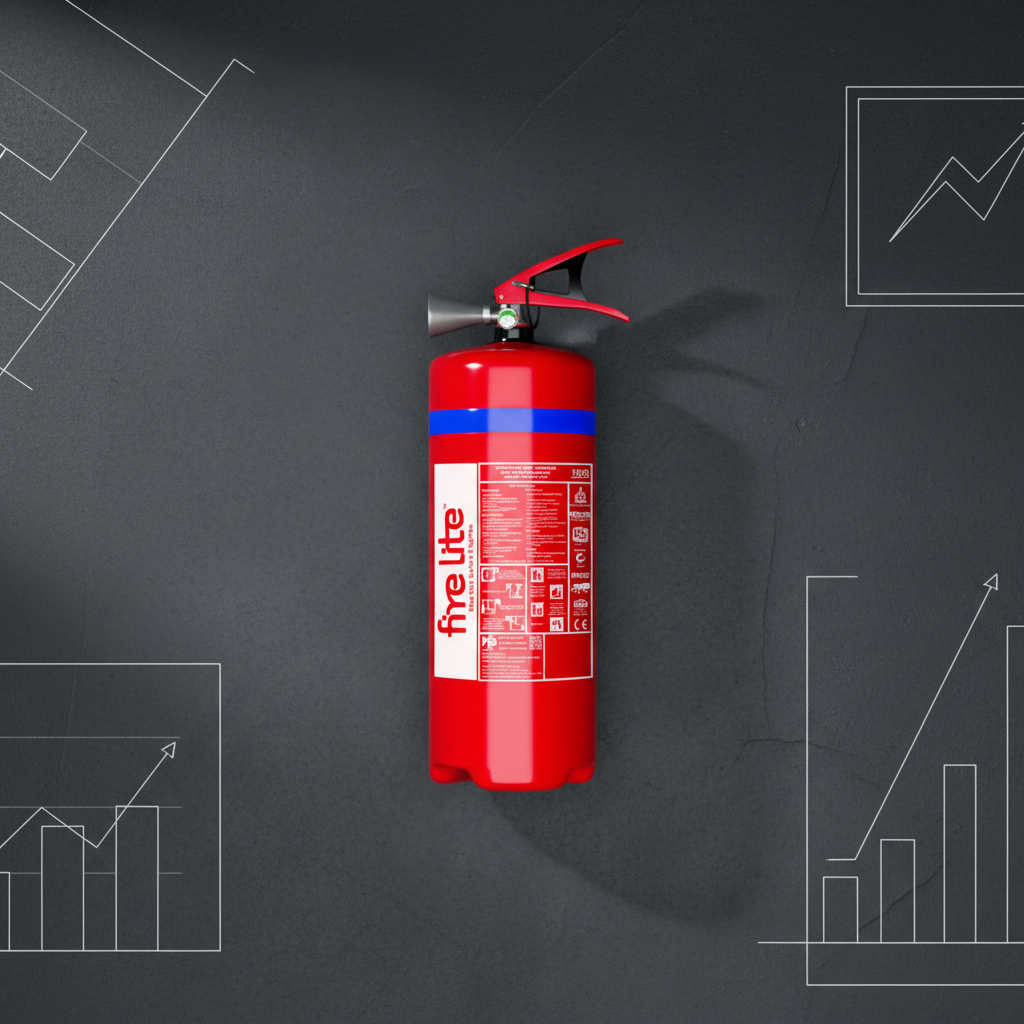

Powder extinguishers ABC Stored Pressure type

Fire accidents can occur unexpectedly and spread rapidly if not controlled at the early stage. The ABC Dry Powder Fire Extinguisher is designed to provide immediate fire suppression and minimize potential damage to life and property.

This extinguisher contains a specially formulated ABC dry chemical powder, primarily composed of mono ammonium phosphate, which works by forming a protective barrier over the burning material. This barrier cuts off the oxygen supply and stops the chemical chain reaction responsible for fire propagation.

One of the major advantages of the ABC fire extinguisher is its multi-purpose capability. It can effectively extinguish three major types of fires:

Specification	FL001	FL002	FL003	FL004	FL005
Capacity	1 KG	2 kg	4 kg	6 kg	9 kg
Fire Rating (Map)	1A:21B	1A:21B	2A:89B	3A:144B	4A:183B
Height (Approx.)	325 mm	380 mm	490 mm	530 mm	575 mm
Diameter (Approx.)	86±10 mm	106±10 mm	140±10 mm	150±10 mm	180±10 mm
Average Discharge Time	9 sec	14 sec	18 sec	24 sec	31 sec
Average Range of Throw	2 m	2.5 m	3 m	5 m	6 m
Average % Discharge	92%	92%	94%	93%	93%
Operating Temperature	-30°C to +60°C	-30°C to +60°C	-30°C to +60°C	-30°C to +60°C	-30°C to +60°C
Max. Service Pressure (Pms)	17 bar	17 bar	17 bar	17 bar	17 bar
Test Pressure	35 bar	35 bar	35 bar	35 bar	35 bar
Expelling Agent	Nitrogen	Nitrogen	Nitrogen	Nitrogen	Nitrogen
Shipping Weight (Approx.)	2.1 kg	3.6 kg	7.0 kg	9.2 kg	13.6 kg
Approvals	BIS & CE	BIS & CE	BIS & CE	BIS & CE	BIS & CE
