Foam SP type

Application Area

Petrol pumps and fuel stations

Oil storage tanks and refineries

Chemical and paint industries

Warehouses storing flammable liquids

Automobile garages and service centers

Industrial plants using diesel and lubricants

Generator rooms and boiler areas

Airports, hangars, and transport depots

Overview

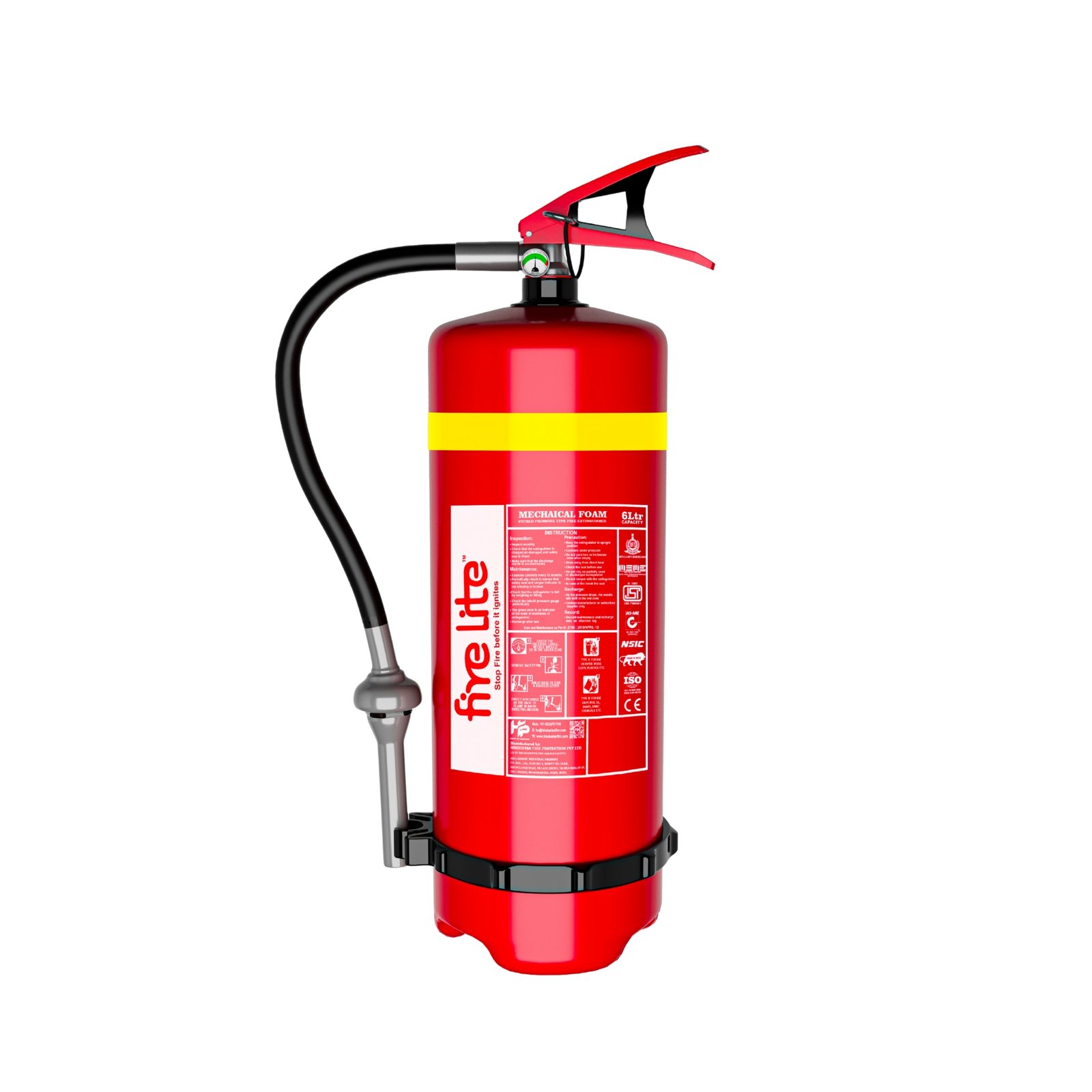

Foam SP Cartridge type fire extinguisher

Fire incidents involving flammable liquids can escalate rapidly and become difficult to control if not handled with the proper fire suppression equipment. The Foam SP Cartridge type fire extinguisher is specifically designed to effectively combat such fire hazards by using a specially formulated foam extinguishing agent.

When the extinguisher is activated, the foam solution is discharged and expands as it reaches the fire. The foam spreads across the burning surface and forms a protective blanket over the fuel, separating it from oxygen and stopping the combustion process. At the same time, the foam helps cool the burning material and suppress flammable vapors, which reduces the possibility of re-ignition.

ITEM CODE	FL031	FL032
Type	Foam	Foam
Capacity	6 Ltr	9 Ltr
Fire Rating (Map)	3A:89B	4A:144B
Height (Approx.)	530 mm	585 mm
Diameter (Approx.)	150±10 mm	180±10 mm
Average Discharge Time	22 Sec	35 Sec
Average Range of Throw	5 m	7 m
Average % Discharge	96%	97%
Operating Temperature	+5°C to +60°C	+5°C to +60°C
Max. Service Pressure (Pms)	17 bar	17 bar
Test Pressure	35 bar	35 bar
Expelling Agent	Nitrogen (UHP Grade)	Nitrogen (UHP Grade)
Approvals	BIS & CE	BIS & CE
