Foam C type

Application Area

Petrol pumps and fuel storage areas

Oil refineries and chemical industries

Paint shops and solvent storage rooms

Warehouses storing flammable liquids

Garages and automobile workshops

Airports and transport depots

Industrial plants handling diesel or lubricants

Boiler rooms and generator areas

Overview

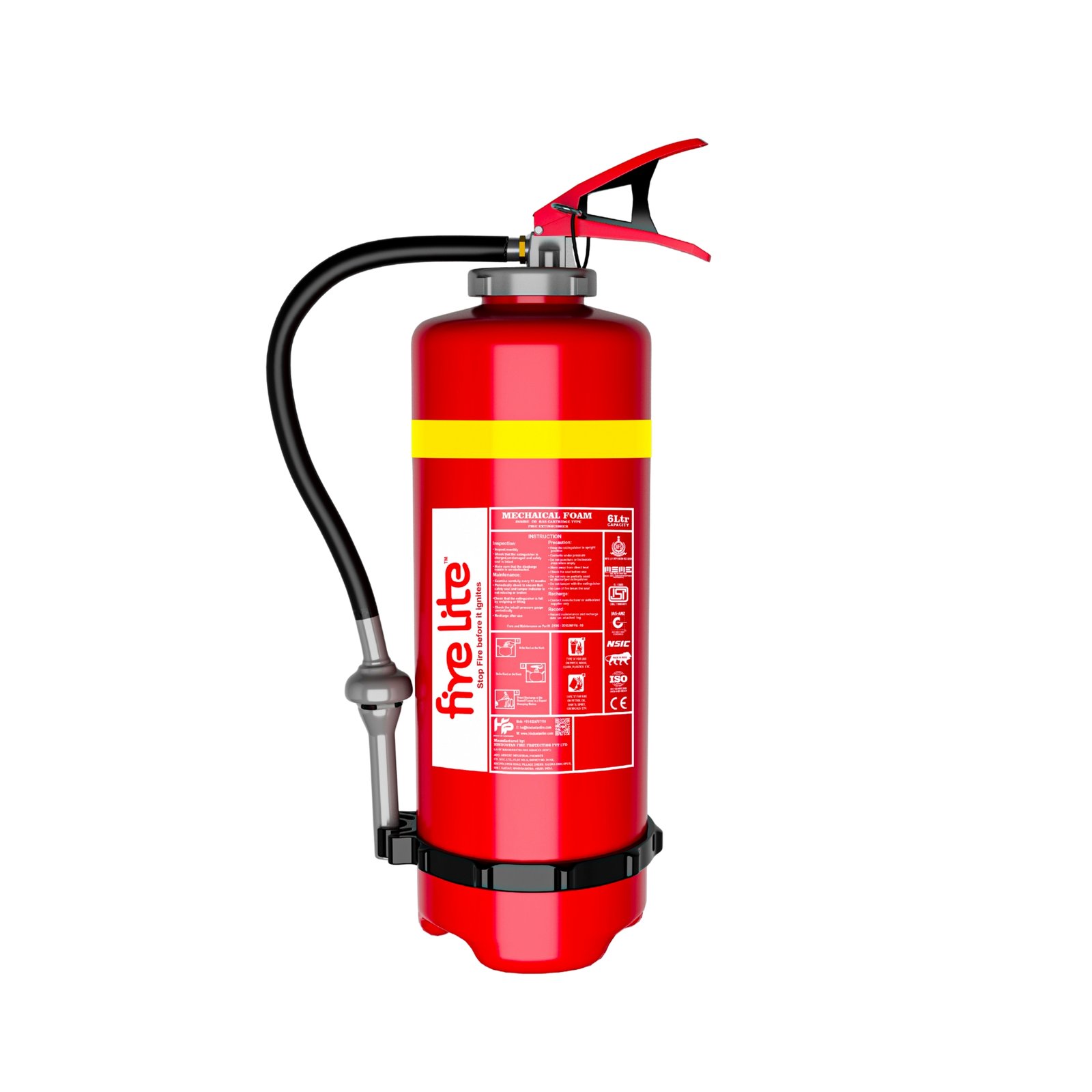

Foam CO2 Cartridge type fire extinguisher

Fire hazards involving flammable liquids can spread rapidly and cause significant damage if not controlled quickly. The Foam CO2 Cartridge type fire extinguisher is specifically designed to tackle such fires by using a foam-based extinguishing agent that effectively smothers flames and prevents reignition.

The extinguisher contains a specially formulated aqueous foam solution that expands when discharged and spreads across the burning surface. This foam creates a protective layer between the fuel and the surrounding oxygen, which helps extinguish the fire by interrupting the combustion process.

ITEM CODE	FL031	FL032
Type	Foam	Foam
Capacity	6 Ltr	9 Ltr
Fire Rating (Map)	3A:89B	4A:144B
Height (Approx.)	530 mm	585 mm
Diameter (Approx.)	150±10 mm	180±10 mm
Average Discharge Time	21 Sec	32 Sec
Average Range of Throw	5 m	7 m
Average % Discharge	96%	97%
Operating Temperature	+5°C to +60°C	+5°C to +60°C
Max. Service Pressure (Pms)	16 bar	16 bar
Test Pressure	35 bar	35 bar
Expelling Agent	CO2 Gas	CO2 Gas
CO2 Gas Cartridge	60 gm	60 gm
Approvals	BIS & CE	BIS & CE
