Co2 Type Fire extinguisher

Application Area

Paint And Varish Booths

Aircraft

Electrical panels and server rooms

Offices and commercial establishments

Computer Centers

Metal Tube manufacturing

UPS rooms and battery storage areas

Printing presses and studios

Overview

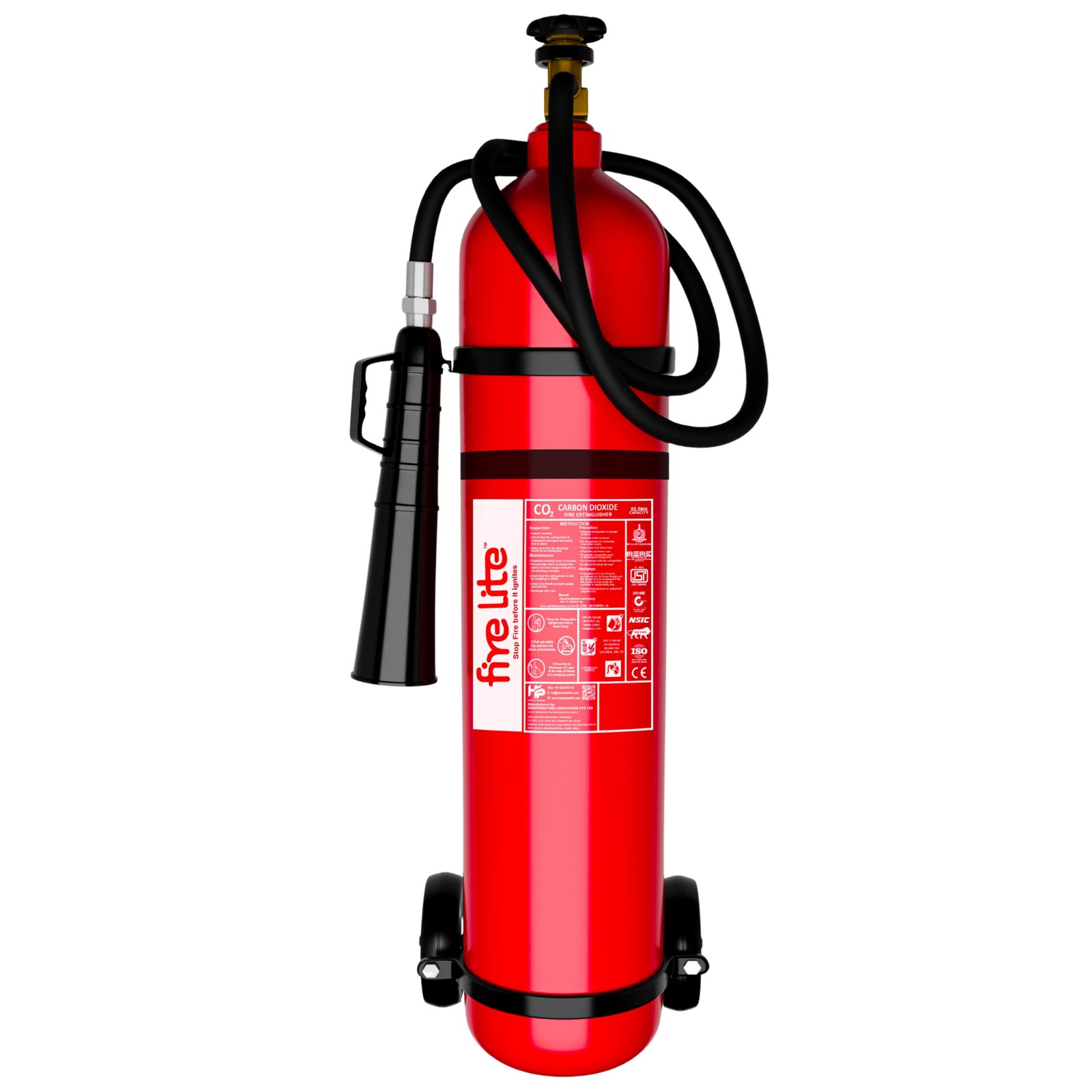

CO₂ Type Fire Extinguisher

Fire hazards involving electrical equipment and flammable liquids require a specialized fire suppression system that can control flames quickly without causing additional damage. The CO₂ Type Fire Extinguisher is designed specifically to handle such fire risks efficiently and safely.

This extinguisher contains compressed carbon dioxide gas stored under high pressure. When the extinguisher is activated, the CO₂ is released through the discharge horn in the form of a cold gas cloud. This cloud works in two ways: it reduces the oxygen level around the fire and cools the burning material, effectively extinguishing the flames.

Specification	FL019	FL020	FL021	FL022	FL023	FL024
Capacity	2 KG	3 kg	4.5 kg	6.5 kg	9 kg	22.5 kg
Height (Approx.)	580 mm	545 mm	700 mm	960 mm	1250 mm	1155 mm
Diameter (Approx.)	108±10 mm	140±10 mm	140±10 mm	140±10 mm	140±10 mm	232±10 mm
Average Discharge Time	9 sec	11 Sec	12 Sec	10 – 20 Sec	15 – 36 Sec	20 – 60 Sec
Average Range of Throw	2.5 m	2.5 m	2.5 m	10 m	10 m	10 m
Average % Discharge	96%	97%	96%	95%	95%	95%
Operating Temperature	-30°C to +60°C	-30°C to +60°C	-30°C to +60°C	-30°C to +60°C	-30°C to +60°C	-30°C to +60°C
Max. Service Pressure (Pms)	60 bar	60 bar	60 bar	60 bar	60 bar	60 bar
Test Pressure	250 bar	250 bar	250 bar	250 bar	250 bar	250 bar
Shipping Weight (Approx.)	9 or 8.3 kg	12.8 or 11.7 kg	17.4 or 16.8 kg	22 or 24 kg	30 or 33 kg	67 or 70 kg
Approvals	BIS & CE	BIS & CE	BIS & CE	BIS & CE	BIS & CE	BIS & CE
